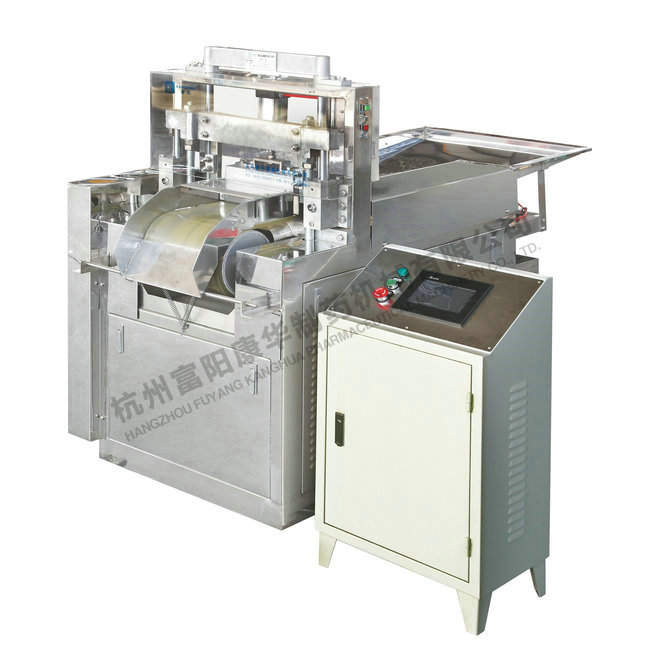

SQY CNC high-speed reciprocating medicine cutter
Product Video
Detail
Main uses
This product is used in cutting and processing of all leaves, seedcases, roots, viness, grasses and flowers for medical use and agricultural products.
Features
It adopts the digital controlling program and it has features such as high accuracy, good stability, continuous working, and it can adapt to the material-entering quantity spontaneously. It is suitable for cutting granules and fine medicinal slices. It is easy to clean, operate, and maintain. It meets the requirement of GMP.
Main technical parameters
|
Model |
Capacity (kg/h) |
Length of sections (mm) |
Power (kw) |
Width of blade (mm) |
Dimension (mm) |
Weight (kg) |
|
SQY-300 |
20-300 |
0.5-100 |
2.6 |
264 |
1720×830×1350 |
500 |
|
SQY-500 |
60-400 |
0.5-100 |
3.0 |
464 |
1720×1050×1350 |
700 |
